Before a designer draws a road, a drain or a building platform, they need to know how the ground looks. A GPS topographic survey gives them that picture. First, the surveyor walks the site with a GPS receiver and records thousands of points. Then the office turns those points into a map with contour lines. This blog follows that path step by step, from the first visit to the final drawing.
1. What a GPS Topographic Survey Actually Records
- Every point has three values. These are its position on the map (easting and northing) and its height.
- Besides ground levels, the surveyor records features such as kerbs, roads, walls, manholes, trees and building edges.
- Also, each point gets a short code, like “kerb” or “edge of road”. As a result, the office knows what every point is.
A topographic survey is not only about hills. In fact, even a flat plot needs one, because small level changes decide where water runs and how deep the foundation goes. For more detail, read about our full topographic survey service. However, GPS cannot see pipes and cables under the ground. Those need a separate utility survey.
2. Planning the Survey Before Anyone Walks the Site
- First, the surveyor asks what the survey is for, such as a building, a road or a drainage plan.
- Next, the team marks the area to cover, with a little extra around the edges.
- After that, everyone agrees on the contour interval (the height gap between two lines) and the coordinate system.
- Finally, a site visit checks the sky view, the access and anything that may block satellite signals.
Each emirate has its own rules. In Abu Dhabi, confirm the grid and height datum with the Department of Municipalities and Transport (DMT). Meanwhile, Law No. (6) of 2017 Regulating Survey Works governs survey work in Dubai. Our survey methodology page also explains how we plan our own projects. A few questions at this stage save a lot of rework later.
3. Control Points: The Fixed Starting Marks
- Control points are a few fixed marks on the ground. Their coordinates are very reliable.
- Every other point on the site is measured from them.
- Usually, the team sets them with longer GPS observation and checks them before work starts. Read more about our control points service.
If the control is wrong, the whole map is wrong, even when every later shot is perfect.
4. Collecting Points in the Field with RTK

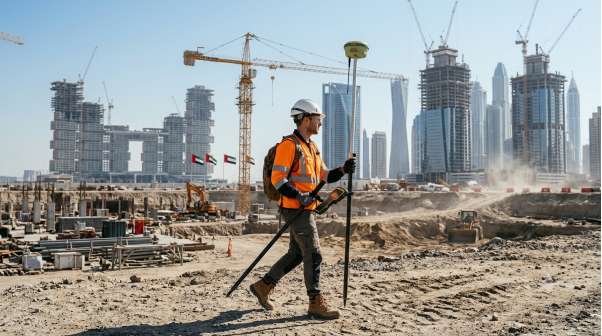

- First, a base receiver sits over a known point. It sends live corrections to the rover, which the surveyor carries on a pole.
- Then, at each spot, the surveyor holds the pole steady and records the point. This takes only a few seconds.
- Also, the surveyor takes points where the ground changes shape, not on a neat grid. Examples are the top and bottom of a slope, ditches and road edges.
- Our GPS survey team works this way on open sites, using the receivers listed on our survey equipment page.
However, GPS has limits. Tall buildings, tight corners and covered areas block signals. In those places, a total station fills the gaps. Our GPS total station guide explains how the two work together. For very large sites or long roads, drone mapping or mobile mapping can also speed up the work.
5. Turning Scattered Points into a Ground Surface
- Back in the office, the team loads the points into survey software.
- Then the software joins nearby points into a net of small triangles. This net is called a TIN.
- Together, the triangles form a Digital Terrain Model (DTM), which is a 3D copy of the ground.
- Also, the surveyor adds lines along slope breaks, such as the top of a bank. Because of this, the model follows the real shape instead of smoothing it out.
Good field coding matters here, because the software relies on it to join the right points.
6. How Contour Lines Are Drawn and What the Interval Means
- A contour line connects points of the same height.
- Lines close together mean a steep slope, while lines far apart mean flat ground.
- The interval is the height difference between two lines. For example, 0.25 m suits flat building plots, and 1 m suits big areas or rough land.
- In addition, the surveyor adds spot heights at key places, such as road crowns and manhole covers.
First, the software draws the contours from the DTM. Then the surveyor checks them and tidies the drawing with our CAD services.
7. Checking the Data and What You Receive
- To start, the surveyor checks a few known points, looks for odd heights and compares the drawing with the site.
- Also, GNSS heights come from a mathematical surface. For this reason, the team ties them to the project’s height datum or to levelled benchmarks.
- Finally, you receive a CAD drawing, contour map, DTM, site plan and coordinate list. These files work with AutoCAD and Civil 3D.
Ask for the survey report as well. It shows which equipment, control points and checks the team used.
Conclusion
A GPS topographic survey is a simple chain. First come control points, then field shots, then a ground model and finally contours. Each step depends on the one before it. Therefore, care at the start protects everything after it. Good control, clear coding and honest checks give designers a plan they can trust. For examples of our work, see our project references. If you have a site that needs mapping, contact our team, and we will suggest the right method.
FAQ
1. What is a GPS topographic survey?
It is a survey that uses GPS receivers to record ground heights and features. Then the office draws them as a contour map.
2. How accurate is a GPS topographic survey?
RTK usually gives accuracy of a few centimetres. However, height is a little less accurate than position.
3. Can GPS be used under trees or between tall buildings?
Not well, because buildings and trees block the signals. In those areas, surveyors use a total station instead.
4. What contour interval should I choose?
Use a small interval, like 0.25 m, for flat plots. For big or steep sites, a larger one, like 1 m, works better.
5. How long does a GPS topographic survey take?
A small plot can take a day. However, large or complex sites need more time for fieldwork and processing.
