Core Utility Survey in Abu Dhabi: Knowing What’s Under the Ground First

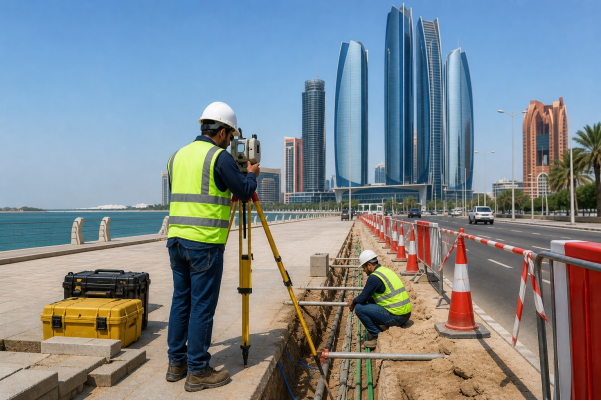

Core Utility

Every site has two layers: the one you can walk on and the one you can’t see. Drawings often describe the second layer with more confidence than it deserves. Crews lose records, repairs go unlogged, and a line that someone “moved” years ago may still sit in its old place.

A core utility survey is how teams check that hidden layer before design decisions and excavation depend on it.

What Is a Core Utility Survey?

A core utility survey is the baseline investigation that locates and maps the main underground services on a site. It shows where they run and roughly how deep. “Core” means it covers the essentials every project needs before anyone breaks ground. It is the starting point of our wider utility survey service.

Most utility survey work combines ground penetrating radar, electromagnetic cable detection and survey instruments such as a total station or GNSS receiver. The team then draws up the findings as a plan that engineers can design around.

Why Is a Core Utility Survey Needed Before Construction?

Because what is unknown underground usually becomes a problem at the worst moment. A pipe can turn up exactly where the foundation was planned, and the designers must rework the plan. Crews can also damage a live cable or water line. That puts the people in the trench at risk and stops work while the team contacts the service owner and deals with the line.

The survey also helps at the design stage. When engineers know what is already there, they can route new services around it from the start instead of adjusting on site.

What Underground Services Does It Locate?

On most sites, the survey picks up:

  • Water mains and supply lines
  • Sewer and drainage lines
  • Power cables and the ducts that carry them
  • Telecom and data lines
  • Abandoned or unrecorded services

The report gives the position and approximate depth of each one. Combine it with a topographic survey, and the design team can see surface levels and buried services on one drawing.

How Is a Core Utility Survey Carried Out?

The sequence is similar on most sites:

  1. Review and site visit: The team checks the available records and walks the site.
  2. Scanning: Surveyors run radar and electromagnetic locators over the area to detect buried services. Our guide to GPR and magnetometer surveys explains these tools.
  3. Marking: Surveyors mark each finding on the ground, so the site team can see it straight away.
  4. Position fixing: They measure the marks with a total station or GNSS equipment to give accurate coordinates.
  5. Drawing: The drafter turns the data into a CAD utility plan that the design team can use directly.

Teams can do the survey before construction, during construction to set out new services, and after installation to record what the crew built. That last record is the same idea as an as-built floor plan for a building, applied to what is underground.

When Should You Book a Core Utility Survey?

Book it before the designers finalise the design, not after the excavator arrives. It is especially useful for:

  • Projects that involve excavation, trenching or piling
  • Road, drainage or pipeline works
  • A plot with an unclear history
  • Work close to existing infrastructure

Ground conditions matter too. Heavy clay and wet, salty soil can reduce how well radar performs. Therefore, a good underground utility survey combines methods instead of relying on one.

Abu Dhabi authorities also set clear rules for service data. For example, the Department of Municipalities and Transport publishes planning data submission standards that cover roads and service corridors. It also issues BIM documentation guidelines for infrastructure projects. So, confirm the current submission rules before you prepare final drawings.

Conclusion

A core utility survey gives your team a clear picture of what lies buried before the first cut, when changes still cost little. If you are planning excavation in Abu Dhabi, a utility survey before design is the simplest way to avoid surprises. To talk through your site, contact Accurate Survey Work or see our project references.

Frequently Asked Questions

1. What is a core utility survey?

It is a baseline survey that locates and maps the main underground services on a site, showing their position and approximate depth before construction or excavation.

2. Is a core utility survey the same as a utility survey?

The two are closely related. A core survey covers the essential checks every project needs. If your site needs more detail, the team can widen the scope, so confirm what the quote includes.

3. What equipment is used?

Typically ground penetrating radar, electromagnetic cable locators, and a total station or GNSS receiver to fix positions.

4. Can it find abandoned services?

Often yes, though results depend on ground conditions. A trial trench can confirm a doubtful reading.

5. What do I receive at the end?

A utility plan, usually in CAD, showing the position and estimated depth of the services found.

6. Do I still need a survey if I have utility drawings?

Yes. Old drawings can miss repairs and changes, so the survey checks them against the ground.

7. How deep can the survey detect services?

It depends on the soil and the equipment. Wet or salty soil limits radar depth, so the report gives approximate depths.

8. How long does a core utility survey take?

A small plot often takes a day on site, plus time for drawing. Larger sites take longer.
