Underground Utility Survey and Detection in Abu Dhabi: Know the Ground Before You Dig

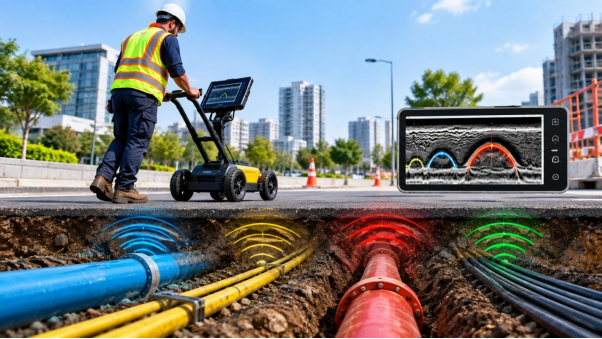

Underground utility survey and detection

On paper, the plot is clear. The drawings show one water line along the boundary and a power cable near the road. Then the first trench opens and there is a second pipe nobody mentioned, running at an angle across the whole width of the site.

Situations like this are common, and they are why careful teams check the ground before they trust the records.

What Is an Underground Utility Survey?

An underground utility survey is the process of finding buried services, such as water, sewer, power and telecom lines, and recording where they run and how deep they sit. The work has two parts. Detection is the field work of locating the services with instruments. The survey part measures their positions accurately and turns them into a drawing the project team can use. Our utility survey service covers both.

A proper utility survey covers both parts. Detection without accurate measurement leaves you with paint marks that fade. Measurement without detection leaves you with a drawing that only repeats the old records.

Why Utility Detection Is Needed Before Excavation

Records show where services were meant to go, not always where they ended up. Crews divert lines during repairs, add new connections without updating the plans, and leave old services in the ground when they replace them.

When a team digs without checking, a single strike can cost a day or more. A damaged cable can cut power, a broken water line can flood the trench, and the crew faces real risk. Even when nothing breaks, finding an unexpected pipe mid-excavation often forces a redesign on the spot. That costs far more than adjusting a drawing in advance.

Methods Used to Detect Underground Utilities

No single instrument finds everything, so survey teams usually combine a few:

  • Ground penetrating radar (GPR): It picks up pipes, ducts and voids by reflecting radio pulses off them. It can detect plastic and concrete services as well as metal ones, which makes it useful where materials are mixed. Read more in our guide to GPR and magnetometer surveys.
  • Electromagnetic cable locators: They trace metal pipes and live cables by detecting the signal that the lines carry or conduct. They are quick and reliable for metallic lines but cannot see plastic ones.
  • Trial trenching: Crews make a small, careful excavation at a chosen point to confirm what a reading shows. It is slower, so teams use it where a result is doubtful or critical.

Each method has a blind spot, and the others cover it. Soil also matters, since wet, salty or clay-heavy ground can weaken radar results.

From Site Scan to Utility Drawing

Once detection starts, the work follows a steady order:

  1. Marking: Surveyors mark each service on the ground as they find it, so the site team can see it straight away.
  2. Measuring: A total station or GNSS receiver fixes the marks to accurate coordinates.
  3. Processing: The team checks the field data and rechecks any readings that don’t agree on site.
  4. Drawing: The drafter draws up the results as a CAD utility plan that shows each service’s position and approximate depth.

The plan is most useful when it sits on a base drawing. Combine it with a topographic survey, and the design team sees ground levels and buried services together. They can then plan trenches and foundations around them.

Abu Dhabi authorities also set clear rules for this data. For example, the Department of Municipalities and Transport publishes planning data submission standards that cover roads and service corridors. It also issues BIM documentation guidelines for infrastructure projects. Therefore, confirm the current submission rules before you prepare final drawings.

Choosing a Reliable Utility Survey Provider

Two utility survey providers can scan the same site and hand back very different drawings. A few questions help separate them:

  • Do they use more than one detection method, or only radar?
  • Do they confirm doubtful readings, for example with a trial trench?
  • Do they fix positions with survey-grade equipment, not just mark the ground?
  • Do they deliver a CAD drawing you can open and design on?
  • Are they open about what ground conditions might limit the results?

A provider who answers these plainly, including the limits of the method, is usually more trustworthy than one who promises to find everything.

Conclusion

Underground utility survey and detection takes the guesswork out of excavation. When the team locates and draws buried services before work begins, the design can change calmly instead of under pressure in the trench. If you are planning ground works in Abu Dhabi, a professional underground utility survey before design is a sensible first step. To talk through your site, contact Accurate Survey Work or see our project references.

Frequently Asked Questions

1. What is the difference between utility survey and utility detection?

Detection is the field work of finding buried services with instruments. The survey adds accurate measurement and drawing, so the results work for design and excavation planning.

2. Can all underground utilities be detected?

Most can, but not always with one method. Metal services respond well to electromagnetic locators, while plastic and concrete ones need radar. Very deep services and difficult soil can still limit results.

3. Is underground utility detection safe for the ground and nearby services?

Yes. Radar and electromagnetic locating are non-destructive, so the scan does not dig up or disturb anything.

4. When should the survey be done?

Before the designers finalise the design and well before excavation begins, so the team can still build any findings into the drawings.

5. What will I receive after the survey?

A utility drawing, usually in CAD, showing the detected services with their positions and approximate depths. It ties to the site coordinates.

6. Does the survey show how deep services run?

Yes, it gives approximate depth. To confirm the exact depth, the team exposes the service with a trial trench.

7. How accurate is utility detection?

It depends on the method, the soil and the type of service. That is why teams combine methods and confirm doubtful readings.

8. Do I need a survey before digging a small trench?

Often yes. Even a small dig can hit a hidden pipe or cable, so a short survey before work starts can save repair costs.
