A gate may look like a small part of a construction project, but its level can affect several important parts of the site. The entrance connects the property with the road, driveway, finished ground and, in some cases, the drainage system. When construction is nearing completion, it is important to know whether the actual entrance level matches the required project level. This is where a final gate level survey in the UAE becomes useful. Rather than relying only on drawings or earlier measurements, a final survey provides measured information about the conditions that actually exist on site.
What Is a Final Gate Level Survey?
Gate level is the height of a property’s entrance relative to the road, driveway and finished ground around it. A final gate level survey measures it, along with the driveway, road, kerb and drainage points, once the external works are complete or close to it.
It matters because even a small difference in level can affect driveway slope, water movement and vehicle access. Checking the actual level against the drawings lets the team review any differences before the team closes out the project.
Why Is the Final Gate Level Important?
The gate is the point where your driveway meets the road, so its level decides how smoothly the two connect. If the gate sits too high or too low compared with the road, the driveway between them has to slope more steeply to make up the difference, and a steep slope makes it harder for cars to drive in and out.
The level also affects water. When the gate sits lower than the road, rainwater can flow towards the property instead of away from it. The same level has to work with the kerb, paving and drainage around the entrance, so checking it before the team closes out the work is far easier than fixing it afterwards.
When Is a Final Gate Level Survey Useful?
A final gate level survey can be useful for different types of projects across the UAE.
New Villa Construction
For a villa or residential property, the entrance needs to connect properly with the existing road and the completed driveway. A final survey can provide measured information about the entrance level and surrounding ground before the team closes out the project.
Commercial Buildings
Commercial properties can have larger entrances, parking areas and paved external spaces. The team needs to consider the relationship between these areas and the existing road. Checking the completed levels can help the project team identify differences that may require review.
Residential Developments
In developments with multiple properties, consistent entrance levels can be important for roads, driveways and drainage. A survey provides actual measurements instead of relying on visual judgement.
Renovation Projects
Existing properties may have changed over time because of paving, extensions, road works or other modifications. A new survey can establish the current levels before anyone carries out additional work.
Properties Connected to Existing Roads
A new entrance may connect directly to an existing road and kerb. In these situations, current road conditions are important because the existing level may differ from older drawings. A site survey provides an updated record of the actual condition.
What Does a Final Gate Level Survey Check?
The exact survey points depend on the project requirements, but they usually cover the same areas listed above, from the gate entrance and driveway to the road, kerb, boundary and drainage points.
For projects that require a wider understanding of existing ground conditions, a topographic survey can provide information about ground elevations, contours, roads, drainage and other physical features. The team should plan the survey according to what the project actually needs rather than collecting unnecessary information.
How Is a Final Gate Level Survey Carried Out?
A final gate level survey normally follows a simple but controlled process.
1. Reviewing the Project Information
Before visiting the site, the survey team reviews the available drawings and understands which levels to check. This may include the proposed gate level, driveway level, road connection and other relevant elevations. The purpose is to make sure the field survey provides information that the team can compare with the project requirements.
2. Establishing the Survey Reference
Reliable level information needs a known reference. The surveyor may use the project’s benchmark or established survey control to create a consistent reference for the measurements. This is important because the measured levels need to relate to the same reference the project team uses.
3. Measuring the Entrance Area

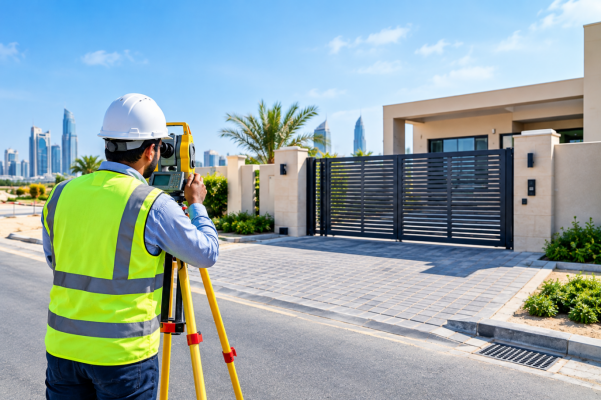

The surveyor then measures the required points around the gate, driveway and surrounding area. Depending on the site and required accuracy, appropriate surveying equipment may include a total station, GNSS equipment or levelling instruments. The surveyor should select the equipment according to the project requirements rather than simply using the same method for every site.
4. Checking the Measured Levels
The surveyor reviews the collected measurements and compares them with the relevant project information. This can show whether the actual site level differs from the intended or documented level.
A difference does not automatically mean that construction is incorrect. It gives the project team information to review against the required tolerances and site conditions.
5. Preparing the Survey Deliverables
After checking the measurements, the team can prepare the information in the format the project requires.
Possible deliverables include:
- Survey points
- Reduced levels
- Level plans
- CAD drawings
- Site measurements
- Survey reports
- Supporting technical information
The team should ideally agree the required deliverables before fieldwork begins.
Why Is Survey Control Important?
Before beginning the survey, the team should understand the project’s:
- Benchmark information
- Elevation reference
- Required accuracy
- Measurement locations
- Design levels
- Existing control points
- Required deliverables
Reliable control also makes it easier to compare measurements taken at different stages of a project. For projects requiring wider survey control and positioning information, ASW also provides GPS and GNSS surveying services.
What Problems Can a Final Gate Level Survey Identify?
A final survey does not correct construction work. Its purpose is to provide an accurate record of what exists on site.
It may help identify:
- Differences between proposed and actual gate levels
- Unexpected driveway levels
- Differences between road and entrance levels
- Changes in finished ground levels
- Differences around drainage points
- Mismatches between drawings and site conditions
Identifying such differences while the external works are still accessible can give the project team an opportunity to review them before the team completes additional finishing work.
Final Gate Level Survey and Drainage
Gate levels can have an important relationship with surface water movement. A survey does not replace drainage design, but accurate elevation information can help show the relationship between the road, driveway, finished ground and drainage points.
If a project has specific drainage requirements, the team should review the measured levels together with the relevant civil and drainage design. This is one reason why accurate elevation information is useful during the later stages of construction. For local requirements in Abu Dhabi, check with the Abu Dhabi Department of Municipalities and Transport.
Conclusion
A final gate level survey gives the project team a clear, measured record of how the entrance, driveway, road and finished ground relate to each other at the end of construction. It does not correct the work, but it shows what actually exists on site so the team can review any differences while the external works are still accessible.
Whether the project is a new villa, a commercial building, a residential development or a renovation, checking the gate level against a reliable survey reference helps avoid surprises with driveway gradients, road connections and drainage. If you need a final level check, gate level information or support from setting out to final survey, the ASW team can help you plan the right survey for your project in the UAE.
Frequently Asked Questions
What is a final gate level survey?
It is a survey that measures the level of the property entrance and the surrounding driveway, road, kerb, finished ground and drainage points near the end of construction, so the team can compare the actual levels with the project requirements.
When should a final gate level survey be done?
Surveyors normally carry it out once the external works around the gate are complete or close to completion. Checking at this stage allows the project team to review any differences before final finishing work begins.
Is a final gate level survey the same as setting out?
No. Setting out transfers the design to the site so the crew builds the work in the correct position and level. A final survey checks what the crew actually built.
What equipment is used for the survey?
Depending on the site and the accuracy required, the surveyor may use a total station, GNSS equipment or levelling instruments.
What does the client receive after the survey?
Deliverables depend on the project, but may include survey points, reduced levels, level plans, CAD drawings and survey reports. It is best to agree these before fieldwork begins.
Does a difference in level mean the construction is wrong?
Not automatically. The team reviews the measured levels against the required tolerances and site conditions, and the project team decides whether any action is necessary.
Can the survey replace drainage design?
No. The survey provides accurate elevation information that the team can review together with the civil and drainage design, but it does not replace that design.
