Ask most surveyors what they like least about road jobs, and the answer is usually the same: working right beside moving traffic. Cars pass at speed, lanes get squeezed, and the crew has to watch the road as closely as the instrument.
Mobile mapping takes much of that work off the roadside. A vehicle fitted with scanners and cameras drives the route and records the kerbs, signs, poles and road edges as it goes. In this blog, we explain how it works on UAE roads, what you receive at the end, and where it has limits.
Reading a Road Without Stopping It: Mobile Mapping for Road Surveys in the UAE
Roads are some of the most difficult places to survey. They are long, busy and constantly changing. Setting up a survey crew beside a live carriageway can slow the work, create safety concerns and require additional traffic management. Mobile mapping offers a different approach. Instead of stopping the road to collect measurements, the survey system moves through the corridor and captures information while travelling.
For road upgrades, infrastructure planning, asset inventories and as-built documentation, this approach can provide a detailed picture of existing conditions while reducing the amount of work required directly beside moving traffic. For broader project requirements, professional land survey services in Abu Dhabi and the UAE can combine mobile mapping with other appropriate surveying methods.
The Challenges of Surveying Busy Roads
Most of the information engineers need from a road is located close to the carriageway. This can include:
- Kerbs and road edges
- Drainage features
- Road markings
- Traffic signs
- Streetlights and utility poles
- Barriers and safety structures
- Existing road levels
- Other roadside assets
Collecting these features manually can require survey teams to work close to live traffic. On major highways and busy urban roads, this may involve traffic management arrangements and additional planning.
There is another challenge: traditional point-based surveying records the features selected during fieldwork. If the design team later needs information that was not originally measured, another site visit may be necessary. Mobile mapping addresses this by capturing a much larger amount of information during the survey run.
What Is a Mobile Mapping System?

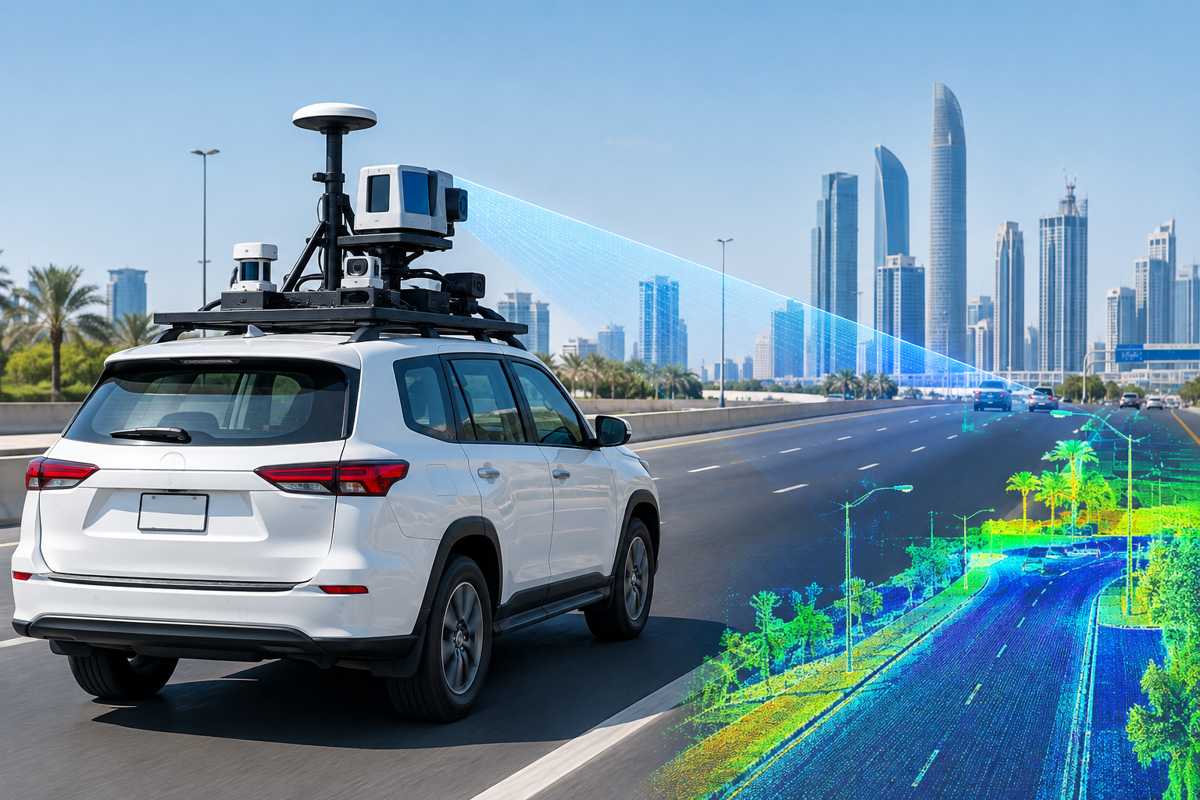

A mobile mapping system combines several technologies on a moving platform, usually a survey vehicle. The system is designed to collect location, geometry and visual information as the vehicle travels along a road or infrastructure corridor.
A typical setup may include:
- LiDAR or laser scanning to capture surrounding geometry
- GNSS positioning to determine the vehicle’s location
- An inertial measurement unit (IMU) to track movement, direction and changes in orientation
- Cameras to provide visual information alongside the point-cloud data
The result is a three-dimensional record of the road environment that can later be processed into useful engineering information.
For projects requiring reliable positioning and survey control, ASW also provides GPS & GNSS survey services in Abu Dhabi.
How Mobile Mapping Works on Roads
A road mobile mapping survey normally follows several stages.
1. Planning the Survey Route
Before fieldwork begins, the survey team reviews the road corridor, project requirements, traffic conditions and required level of detail.
The survey window can then be selected according to traffic conditions and project requirements.
2. Establishing Survey Control
Known control points are used to connect the mobile mapping data to the project’s coordinate system.
Good control is important because the final dataset needs to be checked against known survey references.
ASW’s control point establishment services provide a coordinate framework that can support engineering and mapping projects.
3. Capturing the Road Corridor
The survey vehicle travels through the selected route while the scanners, positioning equipment and cameras continuously collect information.
For wide roads, complex interchanges or areas with obstructions, more than one pass may be required.
4. Processing and Quality Checking
After field collection, the survey data is processed and aligned. The vehicle trajectory and captured point cloud are checked against the established control.
This quality-control stage is important because the usefulness of the final survey depends not only on data collection but also on correct processing and verification.
5. Extracting the Required Information
The processed dataset can then be used to extract the features required by the project.
Depending on the scope, this may include:
- Road edges
- Kerbs
- Road markings
- Drainage features
- Streetlights
- Signs
- Existing levels
- Other roadside assets
What Data Does Mobile Mapping Provide?
A point cloud is often the foundation of the mobile mapping dataset, but project teams generally need information that can be used directly in design and engineering workflows.
Typical outputs may include:
- CAD linework
- Road and corridor features
- Surface information
- Cross-sections
- Asset locations
- Point-cloud data
- GIS-ready information
- As-built survey records
The exact deliverables depend on the project requirements.
For projects that need survey information converted into technical drawings, ASW also provides CAD services in the UAE for 2D and 3D drafting, as-built drawings and construction documentation.
One advantage of capturing a complete corridor is that the existing dataset may answer later questions without requiring another visit to the road.
Challenges to Consider During Mobile Mapping
Mobile mapping is highly useful for road corridors, but it is not suitable for every situation.
GPS Signal Limitations
Satellite positioning can become less reliable under bridges, inside tunnels or near areas surrounded by tall structures.
These conditions can affect the positioning of the survey vehicle. Additional control, careful processing or another survey method may therefore be required in difficult sections.
Obstructions Along the Road
Traffic can also affect what the scanner can see. A large vehicle travelling beside the survey vehicle, for example, may temporarily block a kerb, sign or other roadside feature.
Repeat passes or complementary ground measurements can help address these areas.
Accuracy Requirements
The required survey accuracy should be defined before fieldwork starts. The appropriate equipment, control method and processing workflow should be selected according to the project’s engineering requirements.
This is why mobile mapping should not simply be selected because it is faster. The survey method should always match the purpose of the project.
When Is Mobile Mapping the Right Choice?
Mobile mapping is particularly useful for long, linear projects where a large amount of road and roadside information needs to be collected efficiently.
Typical applications include:
- Highways
- Arterial roads
- Road widening projects
- Interchanges
- Infrastructure corridors
- Road condition documentation
- Asset inventories
- Road improvement projects
- As-built documentation
For large open areas and projects requiring precise positioning, GPS/GNSS surveying can complement mobile mapping. For aerial coverage of large or difficult-to-access areas, drone mapping services can also be considered as a complementary surveying method.
For smaller road sections, individual junctions or projects requiring a limited number of highly precise points, a conventional topographic survey may be more practical. In many projects, the best approach is not to choose one technology over another. Mobile mapping can cover the main corridor while conventional surveying methods can be used for specific areas requiring additional detail.
Planning a Mobile Mapping Road Survey
Before starting a road survey, it is useful to define a few basic requirements:
- Length of the survey corridor
- Required accuracy
- Features that need to be captured
- Expected survey deliverables
- Required CAD, GIS or point-cloud formats
- Existing control information
- Traffic and access conditions
- Areas where GPS visibility may be limited
Defining these requirements early helps the survey team select the appropriate equipment and workflow. For a wider understanding of how different surveying technologies can be selected for different site conditions, see ASW’s guide to land surveying equipment and its applications.
Conclusion
Road surveying does not always have to mean stopping traffic and measuring one feature at a time. Mobile mapping provides a practical way to capture large road corridors while collecting detailed spatial information from a moving survey platform. With LiDAR, GNSS, inertial positioning and imaging working together, the system can create a detailed record of existing road conditions. The resulting data can support road design, infrastructure planning, asset inventories and as-built documentation.
However, mobile mapping is not automatically the best solution for every project. Accuracy requirements, GPS conditions, road geometry, traffic and the type of information required should all be considered before selecting the survey method. For projects across Abu Dhabi and the UAE, Accurate Survey Work L.L.C. provides surveying and mapping solutions for infrastructure, construction, land development and engineering requirements.
Frequently Asked Questions About Mobile Mapping
How accurate is a mobile mapping road survey?
It depends on the equipment, GPS conditions, survey control and processing. Agree the required accuracy before the survey begins.
Does a mobile mapping survey require road closure?
Not necessarily, as the survey vehicle travels along the corridor. Traffic management needs still depend on the project and site.
What happens if a road has no existing drawings?
The captured data creates a measured record of the existing road. It can then be turned into drawings for planning and design.
Can mobile mapping be used for highways?
Yes. It suits long corridors such as highways and arterial roads because large areas can be captured efficiently.
Can mobile mapping replace conventional surveying?
Not always. Conventional methods are still needed for control and difficult areas, so combining both often works best.
